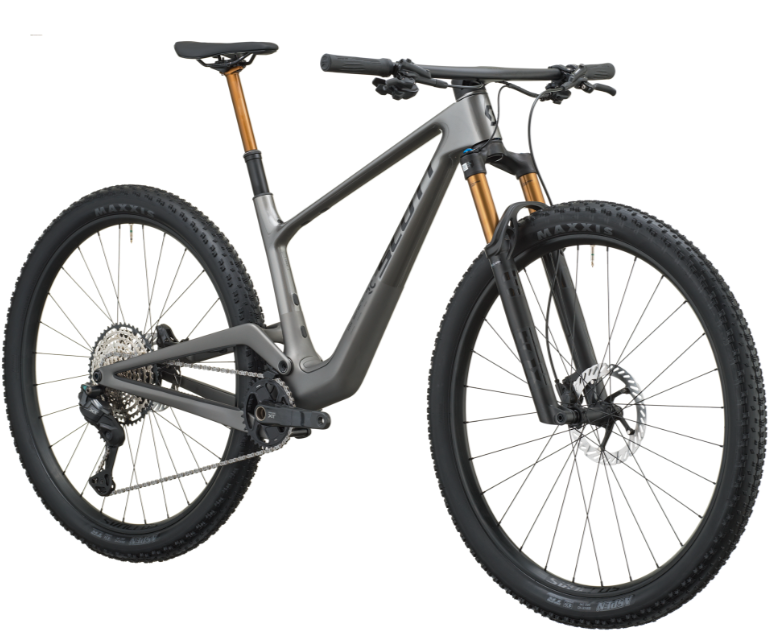

Key Features
- Spark RC HMF Carbon frame
- Fox Factory suspension, Twinloc, 120mm
- Shimano XT - Deore Di2 drive train, 12 Speed
- Shimano Deore 4 piston disc brakes
- Syncros Silverton AL2 wheels
- Maxxis Aspen foldable tires
- Syncros dropper post, Syncros parts
-

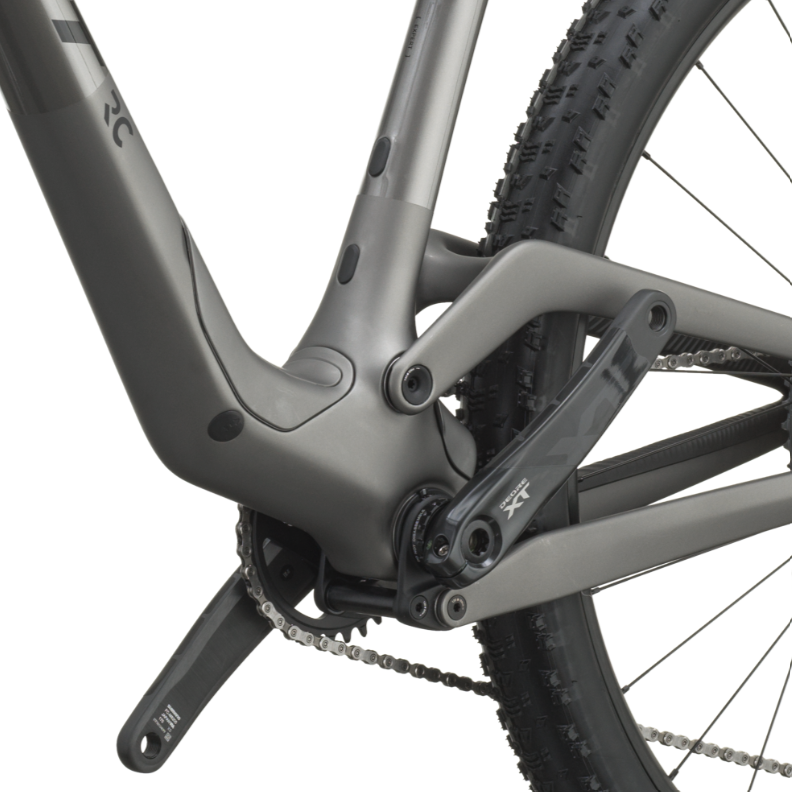

Frame

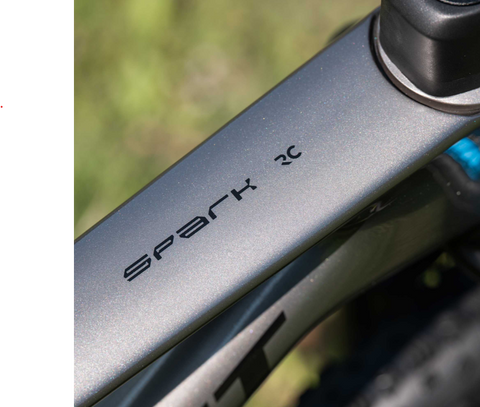

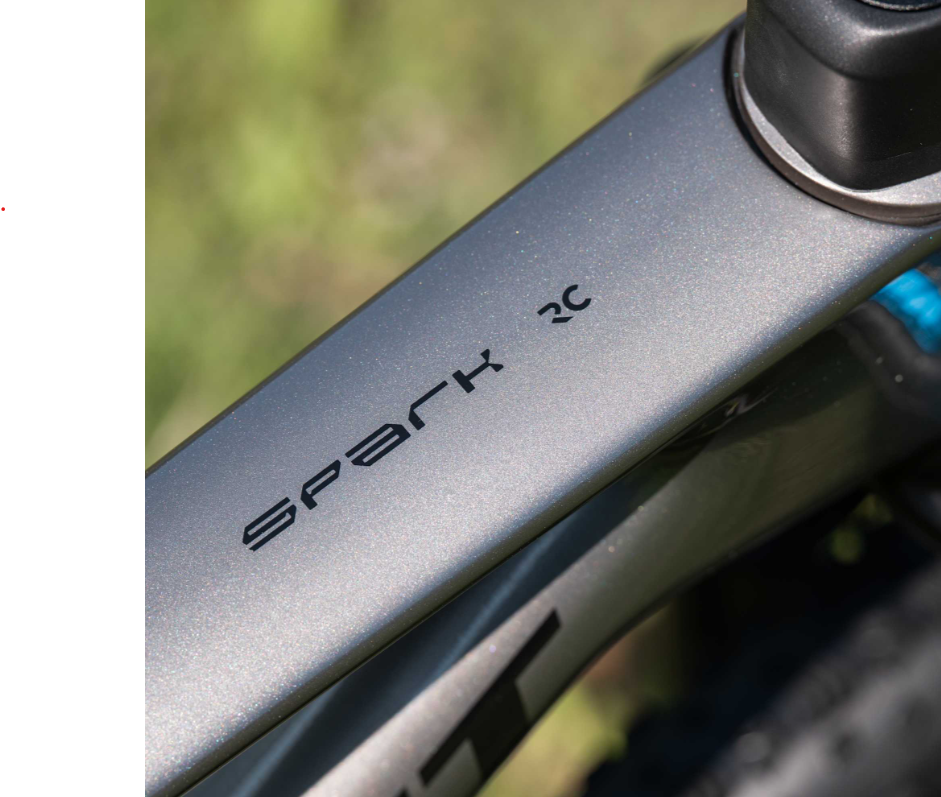

Spark RC HMF Carbon Gen5, adjustable head angle and fork lock, Syncros Octopus cable integration system Gen2, BSA BB, UDH interface, 12x148mm with 55mm chainline -
Travel
Front: 120 mm, Rear: 120 mm -

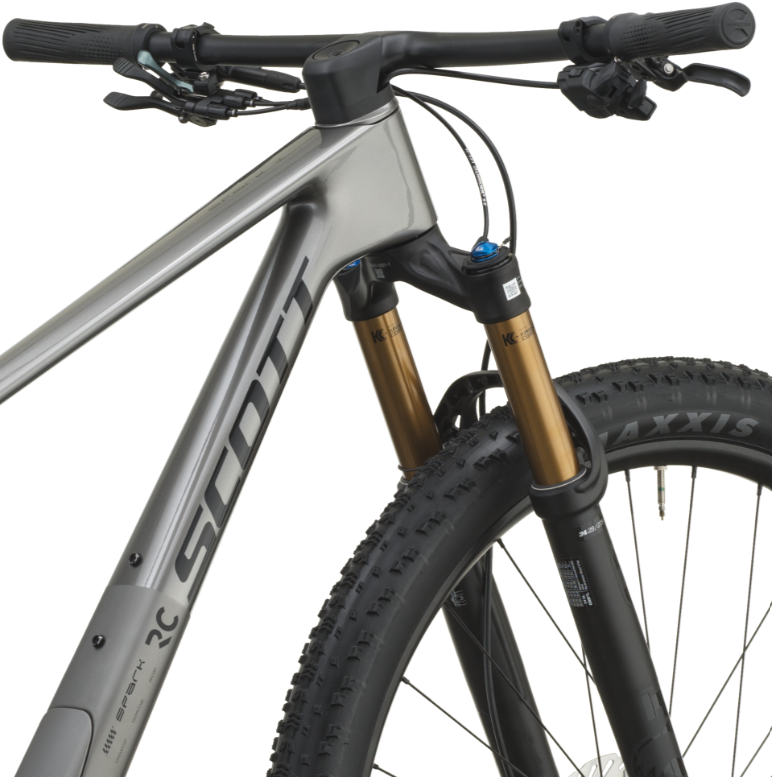

Fork

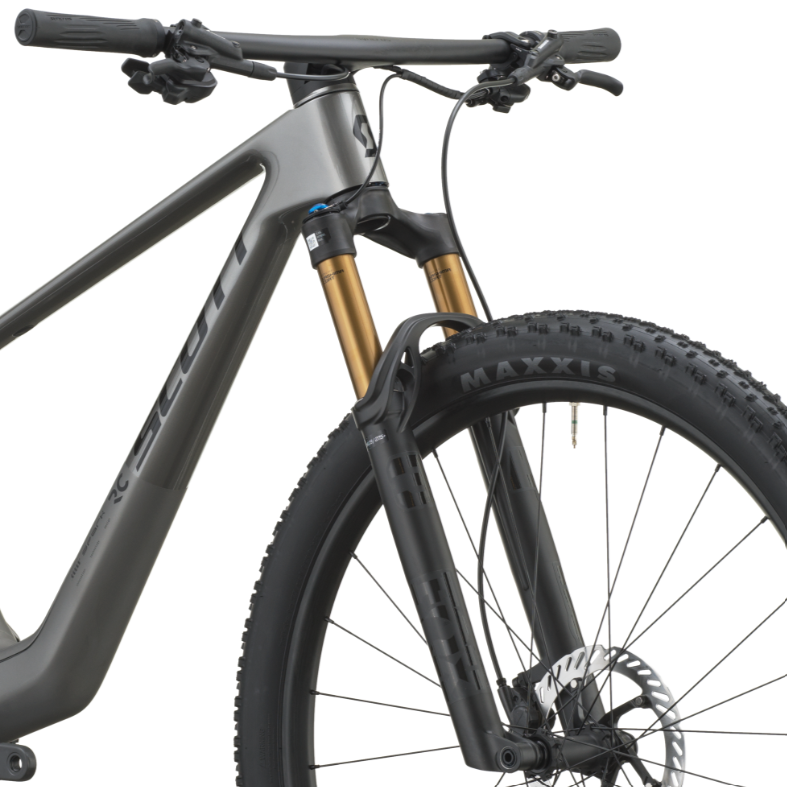

Fox 34SL Factory Grip SL, Kashima, 3P, Kabolt 15x110mm axle, tapered steerer, Reb. Adj, Lockout -
Rear Shock
Fox Float Factory Traction Control EVOL, Kashima, SCOTT custom w. travel, geo adj., 3P: Lockout-Traction Control-Descend, Low Speed & Reb. Adj., bearing hardware 20x8mm, 190X45mm
-
Remote System
SCOTT TwinLoc Technology, Suspension & Dropper Remote, 3 Suspension modes -

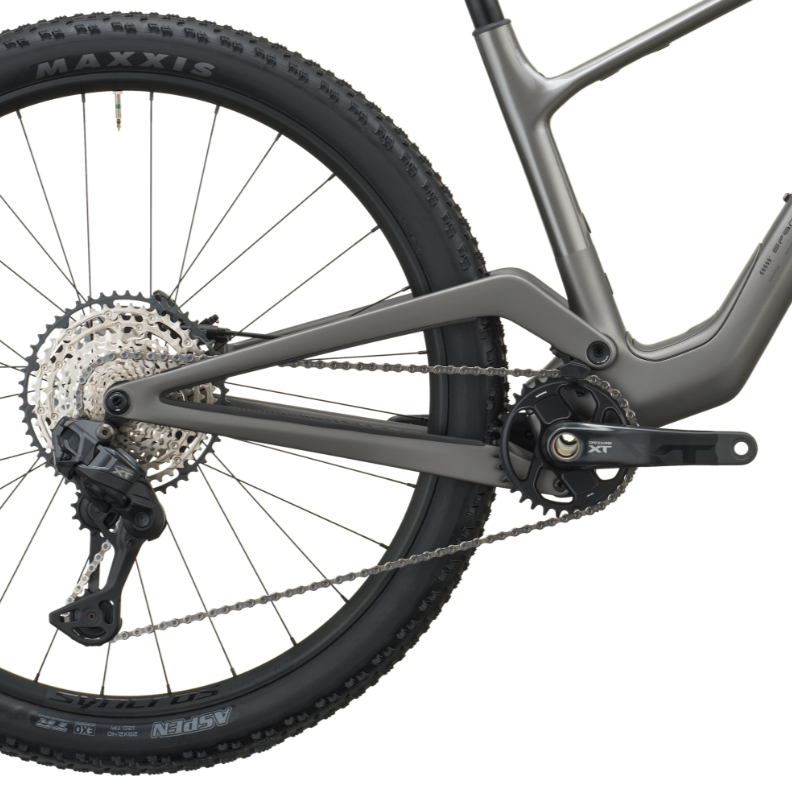

Rear Derailleur
Shimano XT Di2 RD-M8250 12-speed, Wireless Electronic Shift System -
Shifters
Shimano Deore Di2 SW-M6250 -
Crankset

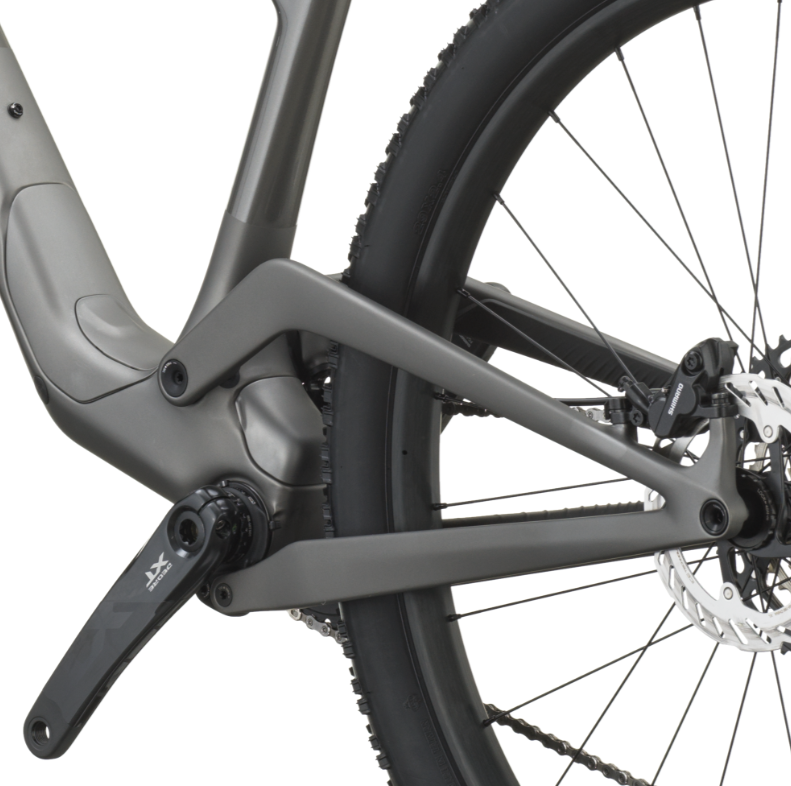

Shimano XT FC-M8200, 34T -
Chainguide
Spark RC Gen5 chainguide -
BB-Set
Shimano BB-MT501 BSA -
Chain
Shimano CN-M7100 -
Cassette
Shimano Deore CS-M7200, 10-51T -
Brakes
Shimano Deore BR-M6220 4-Piston -
Front Disc Rotor
Shimano RT-CL700, 180mm -
Rear Disc Rotor
Shimano RT-CL700, 160mm -
Grips
Syncros XC Lock-On, ready for Tubeless plug Kit Storage -
Handlebar
Syncros IC-M100-AL2, -10° angle, back sweep 7°, 740mm -
Seatpost
Syncros dropper post SP-M100-AL2, 31.6mm -
Seat
Syncros Celista Cut Out, Cr-Mo Rails -
Headset
Syncros - Acros angle adjust +-0.5°, fork lock & cable routing Gen2 system, stainless bearings, IS52 -
Wheelset
Syncros Silverton AL2, CL, F: 15x110mm, R: 12x148mm, 30mm Tubeless ready, 28H, Micro Spline -
Front Tire
Maxxis Aspen 29x2.4", 120TPI Foldable Bead, tubeless ready, EXO -
Rear Tire
Maxxis Aspen 29x2.4", 120TPI Foldable Bead, tubeless ready, EXO -
Extras
Syncros Tool, Shimano Di2 Powerpack -
Accessories
Milkit Sealant -
Approx weight in KG
11.8 Tubless -
Approx weight in LBS
26.01 Tubless -
Max. System Weight
130kg
The overall weight includes the bike, the rider, the equipment and possible additional luggage.
