Frame
Scale Carbon HMF
Adjustable head angle, Syncros Cable Integration System
Advanced Shock & Standing Damping System
BB92, UDH Interface, 12x148mm with 55mm Chainline -

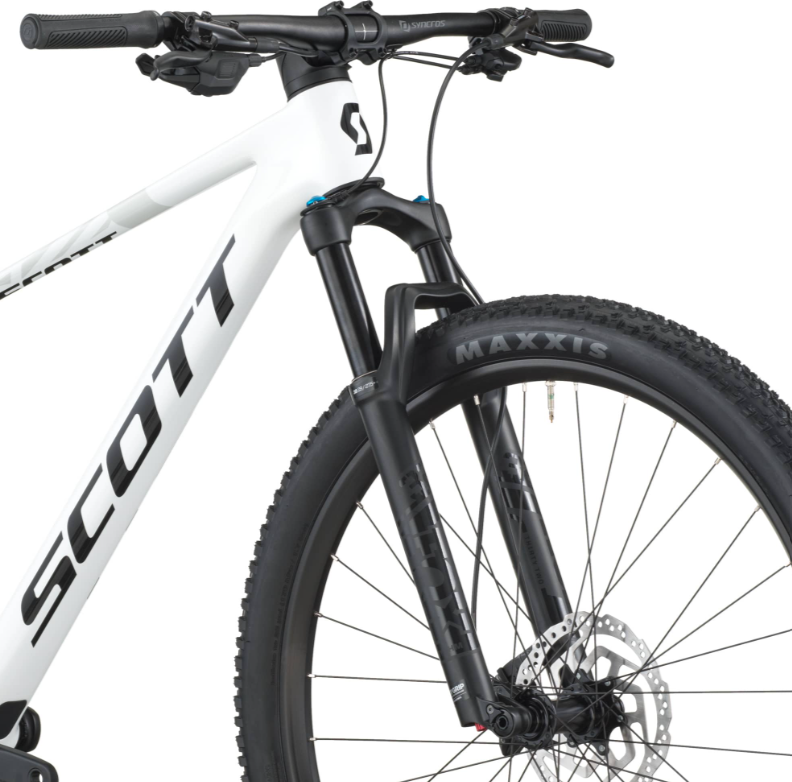

Fork
FOX 32 Float Rhythm Grip
3-Modes, 15x110mm QR axle, 44mm offset, tapered steerer
Reb. Adj., Lockout, 110mm travel -
Remote System
SCOTT RideLoc Technology
Suspension & Dropper Remote
3 Suspension modes -

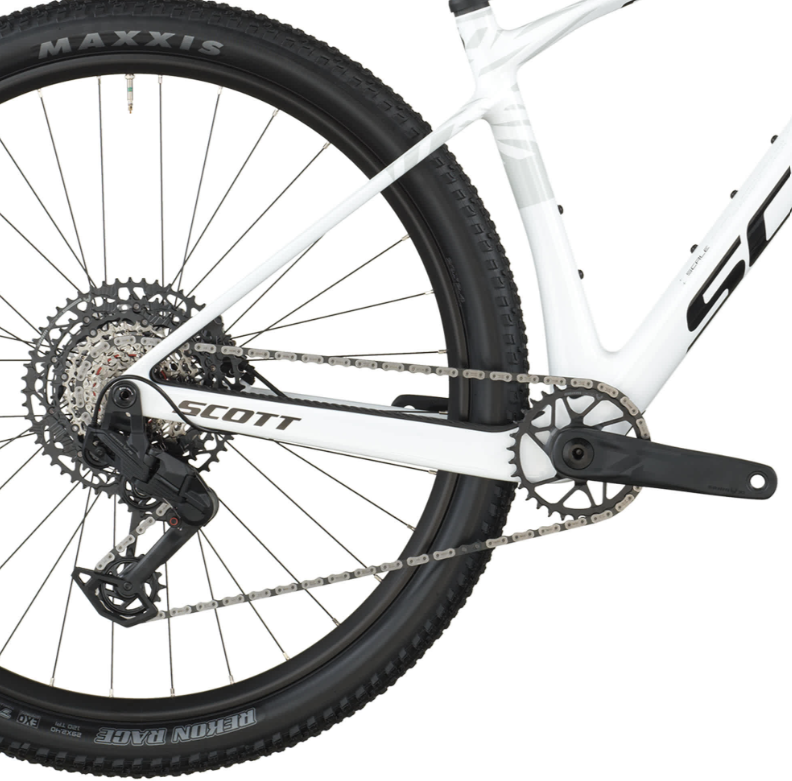

Rear Derailleur
SRAM Eagle 70 Transmission 12 Speed
-
Shifters
SRAM Eagle 70 Trigger -

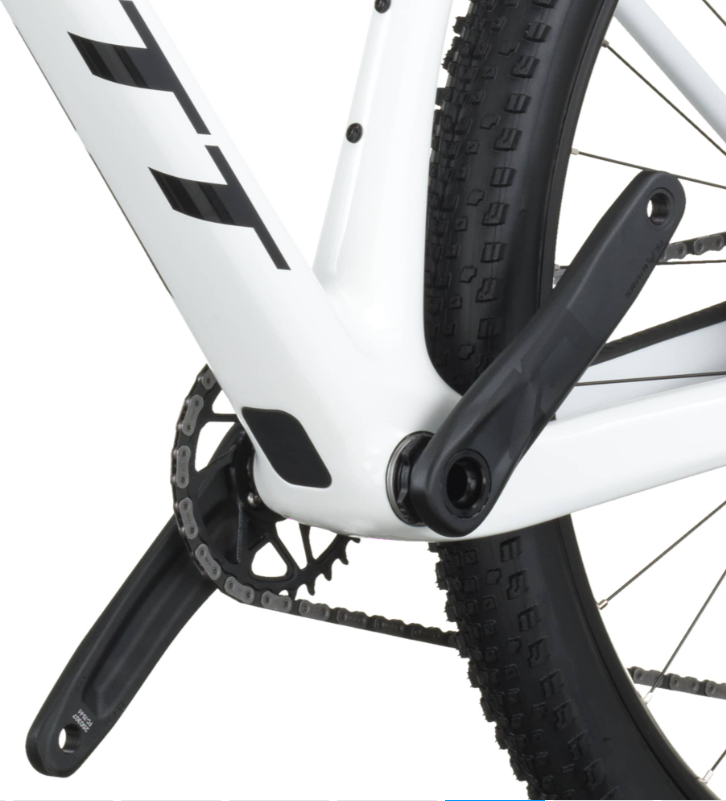

Crankset
SRAM Eagle 70 Transmission
DUB, 55mm CL, 32T -
Chainguide
SCOTT custom -
BB-Set
SRAM DUB PF 92 MTB Wide, shell 41x92mm -
Chain
SRAM CN Eagle 70 Transmission -
Cassette
SRAM Eagle XS 1270 V2 Transmission 10-52 -
Brakes
Shimano MT401 Disc -
Rotor
Shimano SM-RT10 CL, 180/F and 160/R -

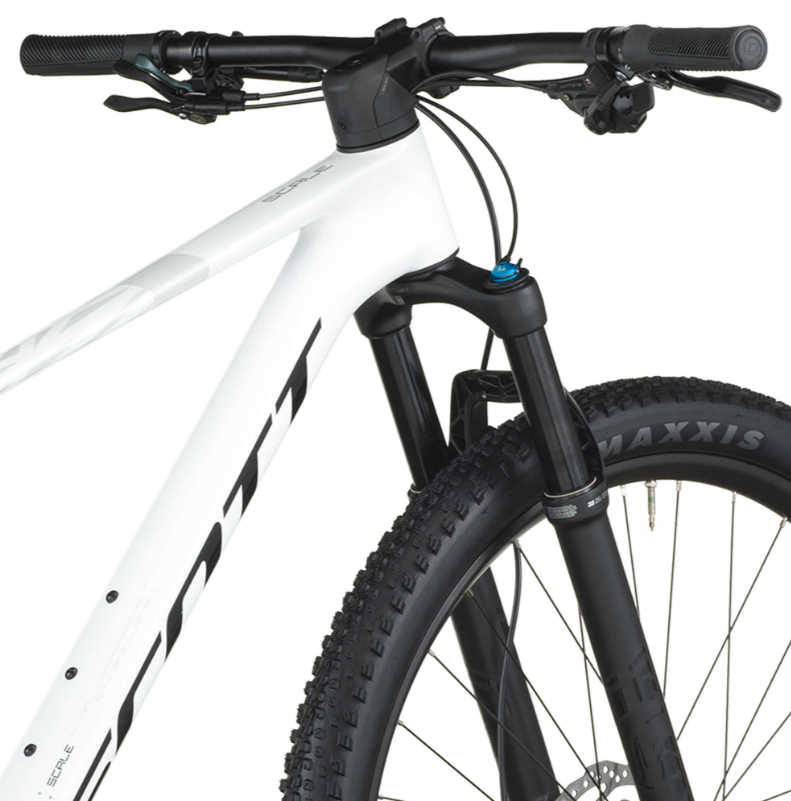

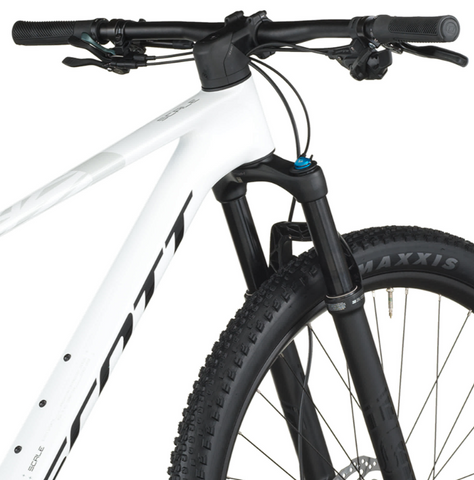

Handlebar
Syncros Alloy 6061
T shape Flat, 9°, 740mm
Syncros Performance XC lock-on grips -
H'stem
Syncros DC 3.0
Syncros Cable Integration System
0° rise, 6061 Alloy, 31.8mm, 1 1/8" -

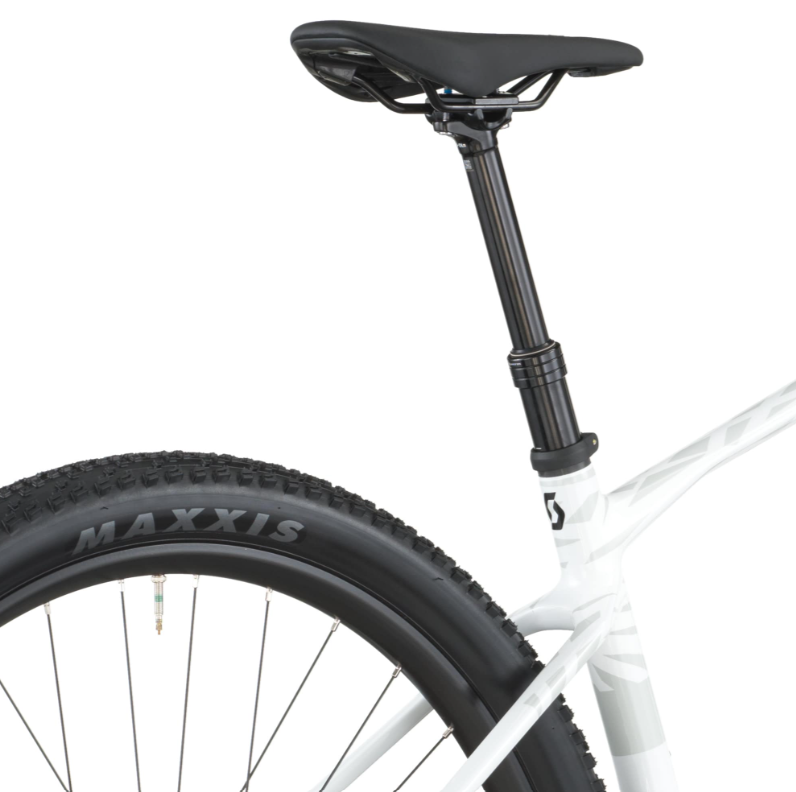

Seatpost
Syncros Duncan Dropper, 31.6mm
S size 100mm, M size 130mm, L &XL size 150mm -
Seat
Syncros Belcarra Regular 2.5 -
Headset
Syncros - Acros Angle adjust & Cable Routing HS System
+-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB -
Front Hub
Formula CL-811, 15x110mm -
Rear Hub
Formula CL-3248, 12x148mm -
Spokes
Stainless Black 15G, 1.8mm -
Rims
Syncros X-30SE, 32H, 30mm
Tubeless ready -
Front Tire
Maxxis Rekon Race, 29x2.4", 120TPI Foldable Bead
Tubeless Ready, EXO -
Rear Tire
Maxxis Rekon Race, 29x2.4", 120TPI Foldable Bead
Tubeless Ready, EXO -
Approx weight in KG
11.9 (Tubless setup) -
Approx weight in LBS
26.23 (Tubless setup) -
Max. System Weight
130kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
